The fitting of heat extracting fans to improve the efficiency of an absorption fridge is not a new idea, so what's different about the 3DprintRV fridge fan system?

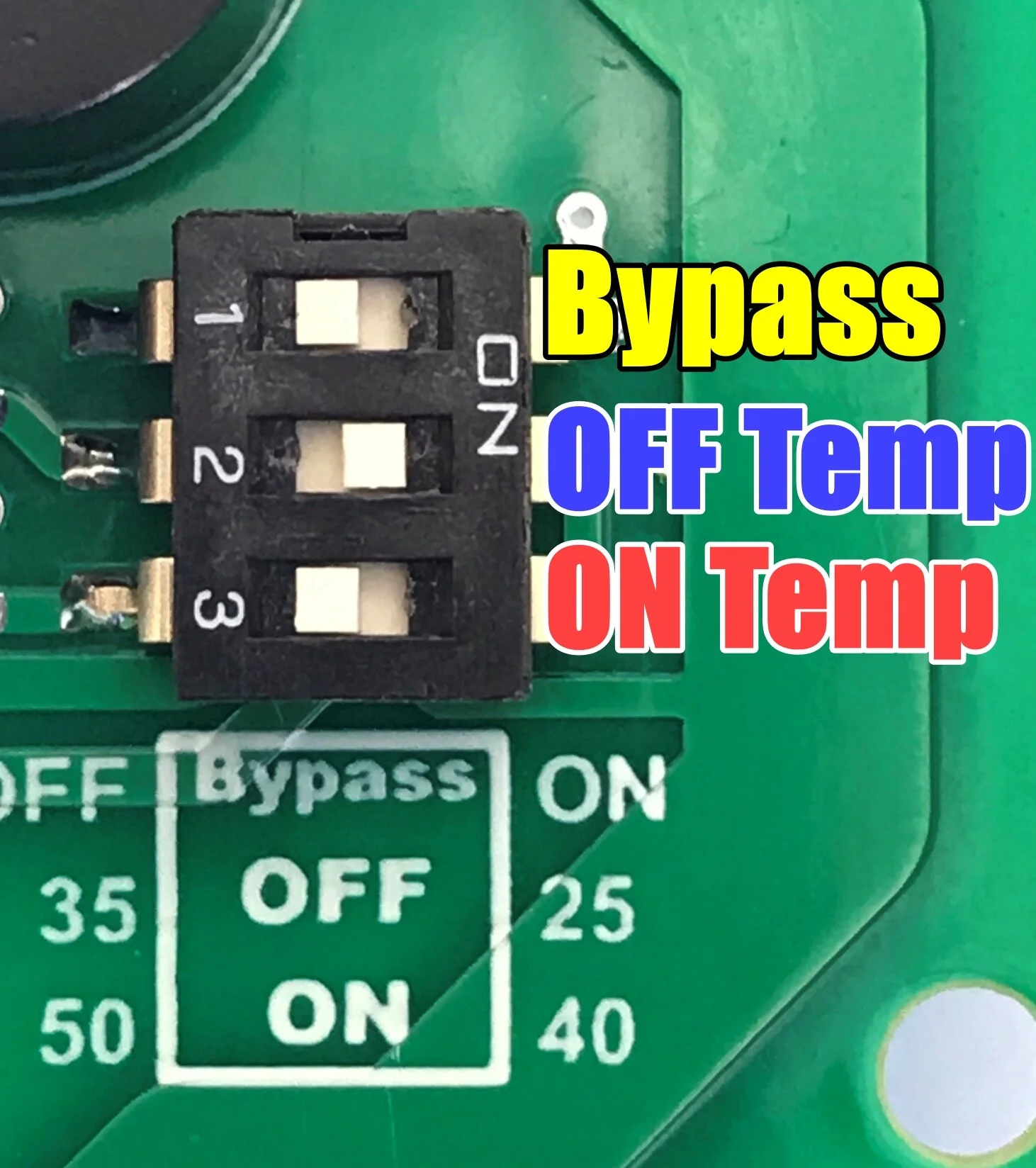

• Controller bypass switch in the unlikely event of failure. Peace of mind!

• Neat, professional finish.

• Low standby power draw (14mA).

• Simple connector system allows vent to be easily removed for maintenance.

• Reverse power protection built in.

• SMART FANS - Our fans move up to 1640l/min & vary their speed depending on system requirements. This means less noise, less wear & lower overall power consumption. ( Slim fans don’t have this feature)

• SMART FANS will simply stop if the blades are blocked & restart when they are free again. No burn outs! (Slim fans don’t have this feature)

• Low current draw (0.25 amps in total).

• A multicolour LED provides unobtrusive visual indication of what the fans are doing.

• Over-temperature alarm alerts if temperature behind vent gets too high.

• Simply requires 12v to be provided to the connector on the fan mounting plates. All other wiring is done.

• System is fully tested before being sent to you.

• No drilling required to mount the fans.

• 36 months warranty.

The graph in the pictures shows the before and after performance of my Dometic fridge in a Jayco Penguin while running on 240v. I’ve marked the point on the graph where the fans were installed. The internal fridge temperature stayed below 5 degrees after the fans were installed and this was at up to 41 degrees ambient, running on 240v!

NOTE: This was our fridge & represents the best possible results. Results WILL vary from fridge to fridge.

The fans don’t cause any issues with the flame when the fridge is operating on gas.

The kit comes with quiet, high quality, brushless, smart fans that draw 0.25 amps in total.

Installation is as simple as:

1. Removing the vent.

2. Mounting the fans & PCB mounting with ZIP-TIES.

3. Connecting the fans to your van battery management system.

4. Refitting the vent with the fans fitted.

The controller automatically turns the fans on when the temperature reaches the chosen trigger point.

A multicolour LED provides unobtrusive visual indication of what the fans are doing.

Detailed, step by step instructions with photos are provided & include my phone number for support.

Any questions prior to purchase of a kit will be promptly answered using our contact page.

Klevacool fridge fans have always been recognised for their quality.

Our fridge fan kits now come with a 3 year warranty.

Important Notes!

These fans require extra room behind the vent to enable them to fit.

To determine what fan kit you require, follow the steps below:

• Measure the distance from the outside wall of the van, inwards, as per the picture below.

• Identify what vent you have fitted to your van, by counting the slots & checking what the vent dimensions are.

• The table to the RHS of the picture shows the minimum depth required for the various vent types & the type of fans (standard or slim)

EG: If you have a Dometic 8 slot vent (brand in top middle of vent), you’ll require 58mm of depth for standard fans & 49mm depth if “Slim fans” are selected.

PLEASE NOTE! Triple fans will ONLY fit the Dometic & Thetford LARGE vents!

• This fan system is designed to fit any vent type. Fans are 120mm square & there are two. Some extra room is required to mount the quick connect board as it is 30mm high at its highest point.

• The vents shown in the pictures are not supplied. The fans supplied in the kit are ZIP-TIED to your existing vent.

• Installation of these fans is simple, but a power supply is required for them to operate. Wiring will need to be installed from the van electrical system to the vent. 4 meters of wire is included.

• We don't recommend connecting directly to the battery as this will bypass any battery low voltage protection devices in your van.

• If you are unsure how to install this wiring, please consult with your local auto electrician or caravan repair shop.

• Detailed installation instructions are included.

FANS (Both standard & slim types)

• Size -120mm

• Bearing - Hydrodynamic

• Current draw - 0.25A total  for two (6Ah/day at max speed)

• Moves up to 58cfm (1640L/min) of air per fan (3280L/min total)

• Ingress rating - IP54

INCLUDED IN KIT

• 2 x quiet, high quality brushless, smart fans (or slim fans, if selected)

• 1 x Klevacool controller with 3D printed mounting plate.

• 1 x fuse holder

• 2 x 3A fuses

• 4 meters of wire for battery connection.

• Four pin connector

• Short length of spiro wrap

• zip ties in both black & white (to suit the colour of your vent)

• Installation instructions

This product carries a 36 month warranty.
