Klevacool™ Caravan Compressor Fridge Internal Fan Kits
Klevacool™ Caravan Compressor Fridge Internal Fan Kits
Tired of your 12/240v compressor fridge frosting up?
Is your fridge not cooling items in the fridge door as well as it should?
*
Our Klevacool™ (pronounced Clevercool) internal fridge fans reduce frost build up & ensures your fridge cools evenly!
They work by circulating the air inside your fridge, making sure cool air gets to all areas.
Our systems are specifically designed for upright compressor fridges (NOT chest type fridges).
Everything required to fit the fans (including detailed instructions) is included in the kit.
These kits are as close to “Plug & Play” as we can make them!
*
Fans can be connected to 12v directly & fans controlled by the inbuilt thermostat OR the thermostat can be bypassed & fans can be connected to the compressor fan output so they only run when the compressor runs.
The choice is yours!!
*
Our designs stick onto the side of your fridge using removable double sided tape.
If you don’t like where it’s mounted, simply move it! (extra mounting strips available)
Please read important notes at the bottom of this page before ordering!
*
Available in fixed twin or single options & also a compact adjustable version for smaller fridges.
Fixed Single - For fridges up to 100L
Fixed Twin - For fridges over 100L

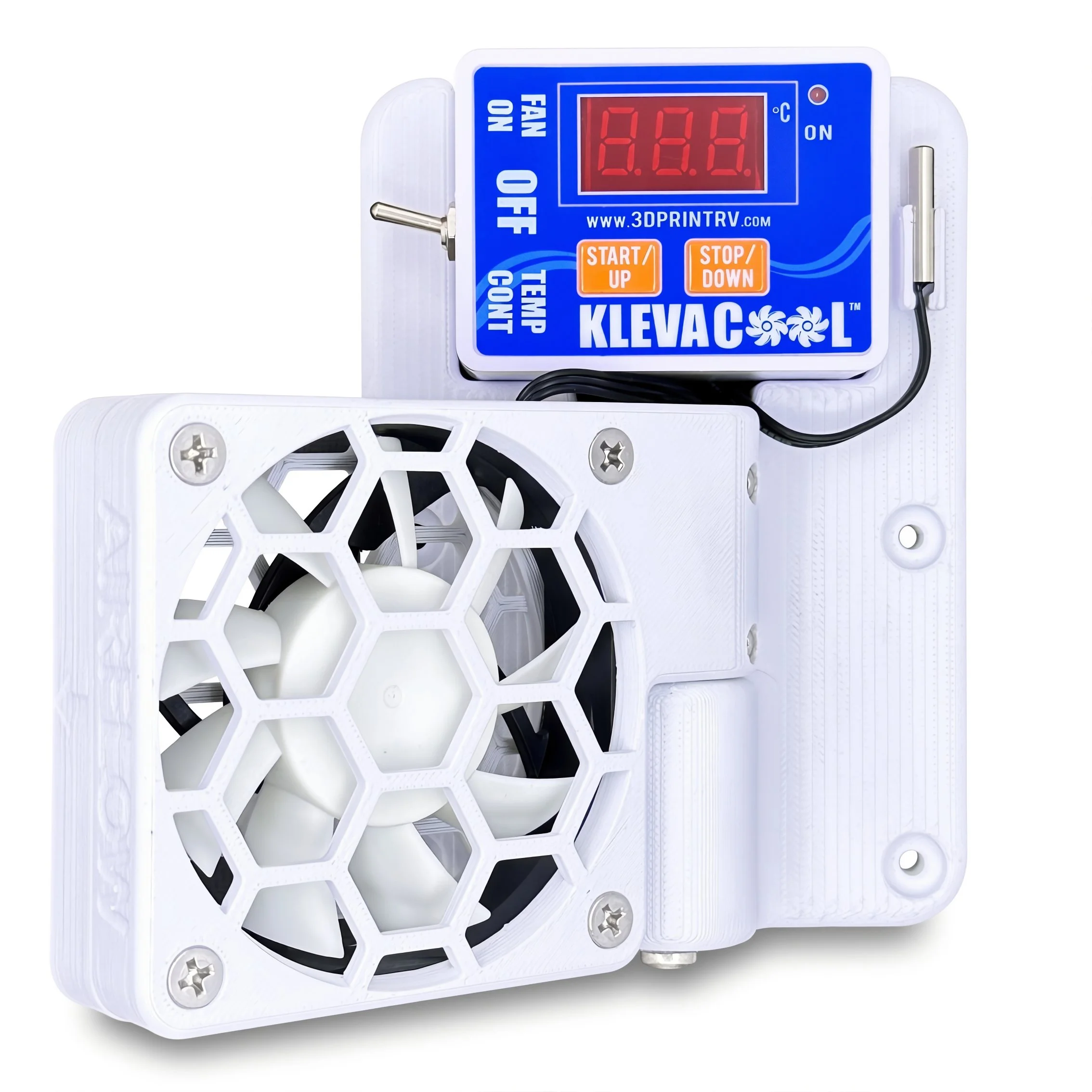

Adjustable single -For fridges up to 100L. Very compact & fan angle adjustable 55 degrees either way!
** Please check the dimensions of the fans in the pictures & measure your fridge to ensure they will fit! **
*
NOTE:
Self adhesive cable clips (keep wiring neat) & extra self adhesive strips for fan mounting can be purchased with your kit.
Simply scroll through the drop down list & select which extra options you’d like.
Free Postage Australia Wide!
3 YEAR WARRANTY ON THIS KIT!
Some of the great features of the Klevacool Compressor fridge internal fan system!
The fitting of fans inside a fridge is not a new one, so what's different about the Klevacool Compressor Fridge internal fan system?
The fans mount to the side or rear of the fridge using removable double sided tape.
The Adjustable Fan allows for the fan to be swivelled up to 55 dgrees either side of vertical! Mount it where you like!
Thermostat can be easily adjusted to suit your preference. Instructions are included.
Thermostat probe can be removed from its holder & mounted in a location of your choice.

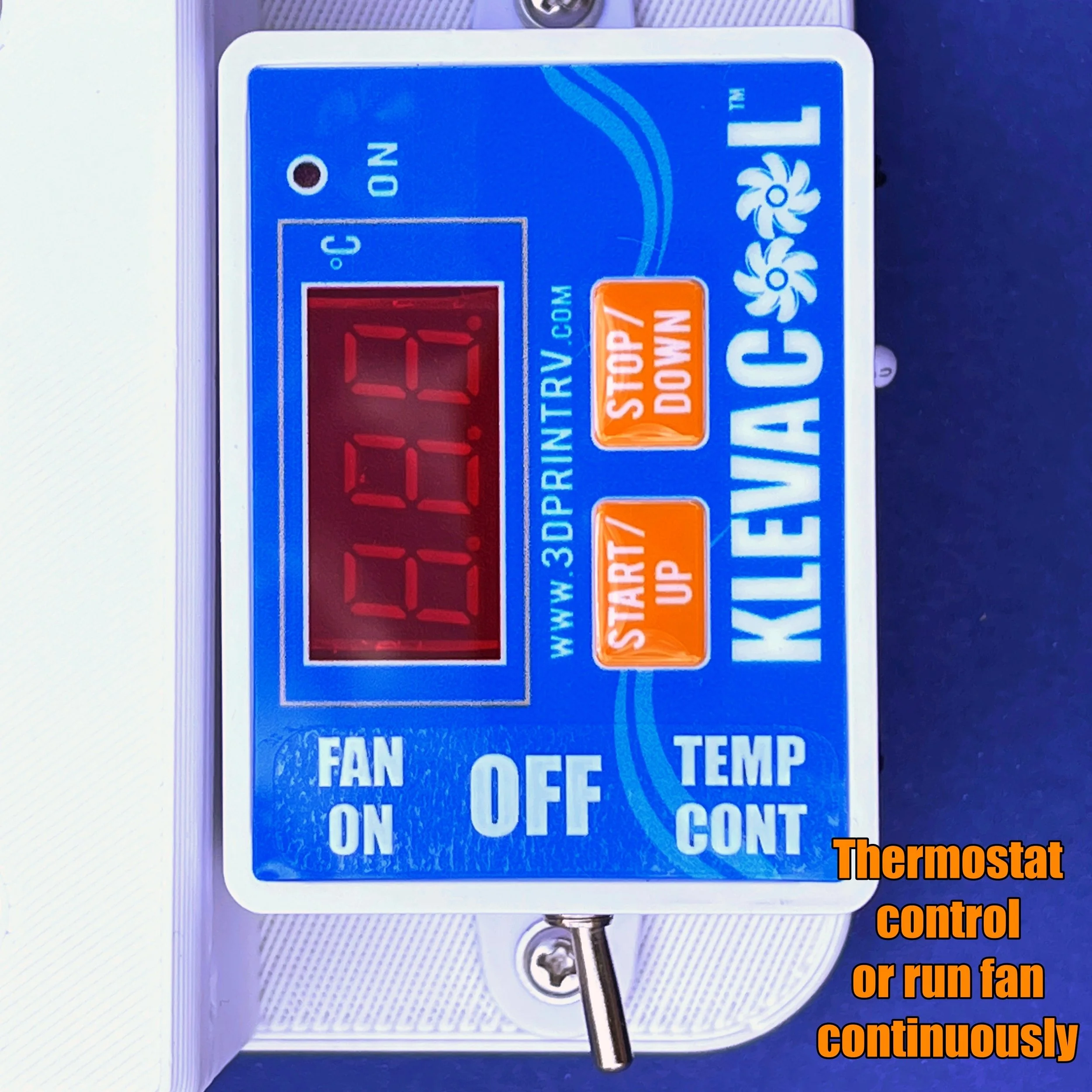

Built in switch provides option to run fans continuously or controlled by thermostat.
Thermostat can be mounted horizontally or vertically, depending on fan mounting position (Feature NOT available with adjustable fan).
Built in fan guards prevent blades from being fouled.

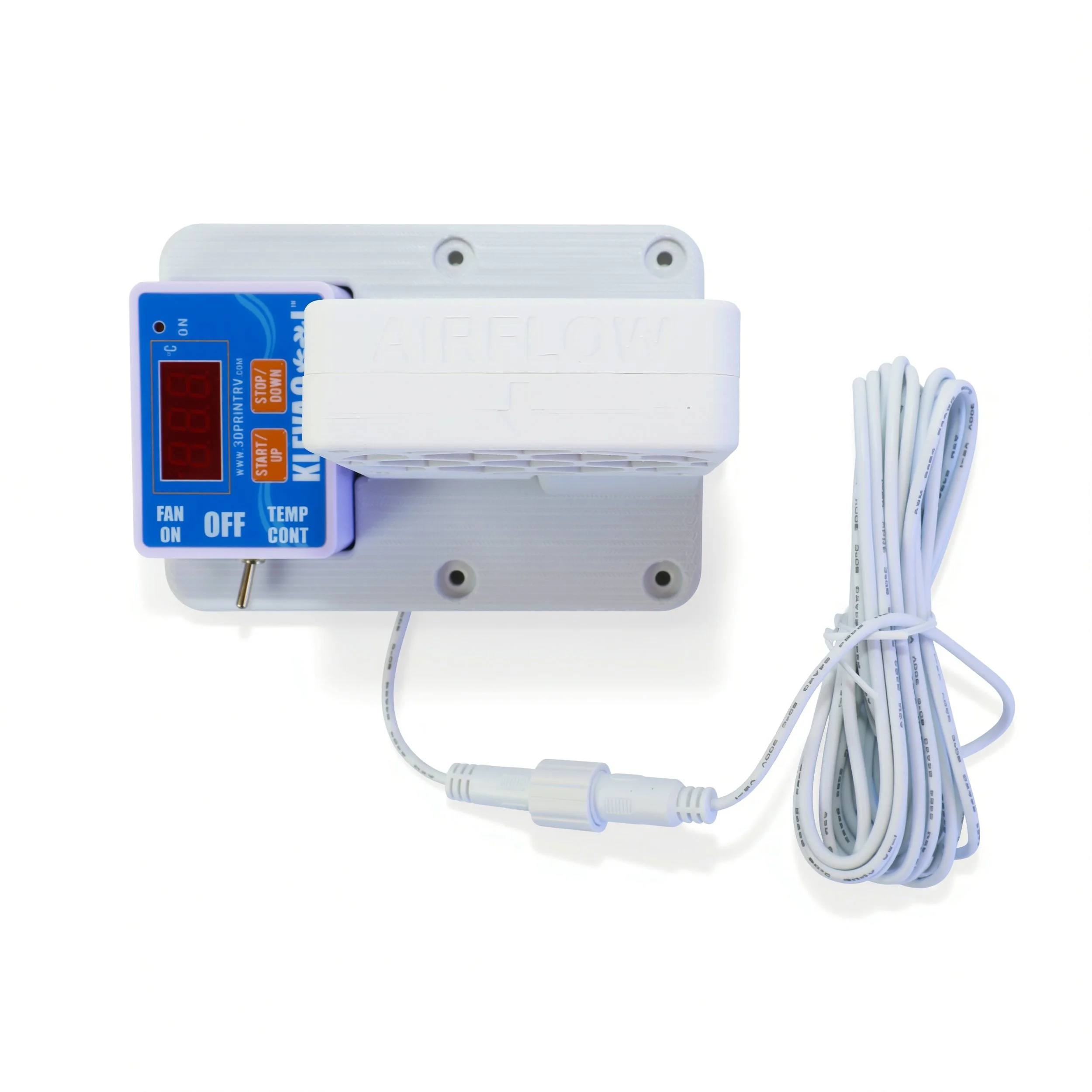

Includes 4 meters of 3mm diameter cable with WATERPROOF CONNECTOR!
All screws are STAINLESS STEEL, so they won’t rust.
Low current draw. 0.14A (single & adjustable) or 0.24A (twin) when fans are running & 0.04A when off.
Simply requires a 12v power source.
OR
Can be connected into an existing Klevacool Fridge Vent Fan system for FULLY automatic operation!
System is fully tested before being sent to you.
No drilling or zip ties required to mount the fans
Easily removable
Cables are simply run through the drain tube at the back of the fridge or, if you don’t have a drain tube, power may be available inside the fridge.
36 months warranty.
Installation is as simple as:

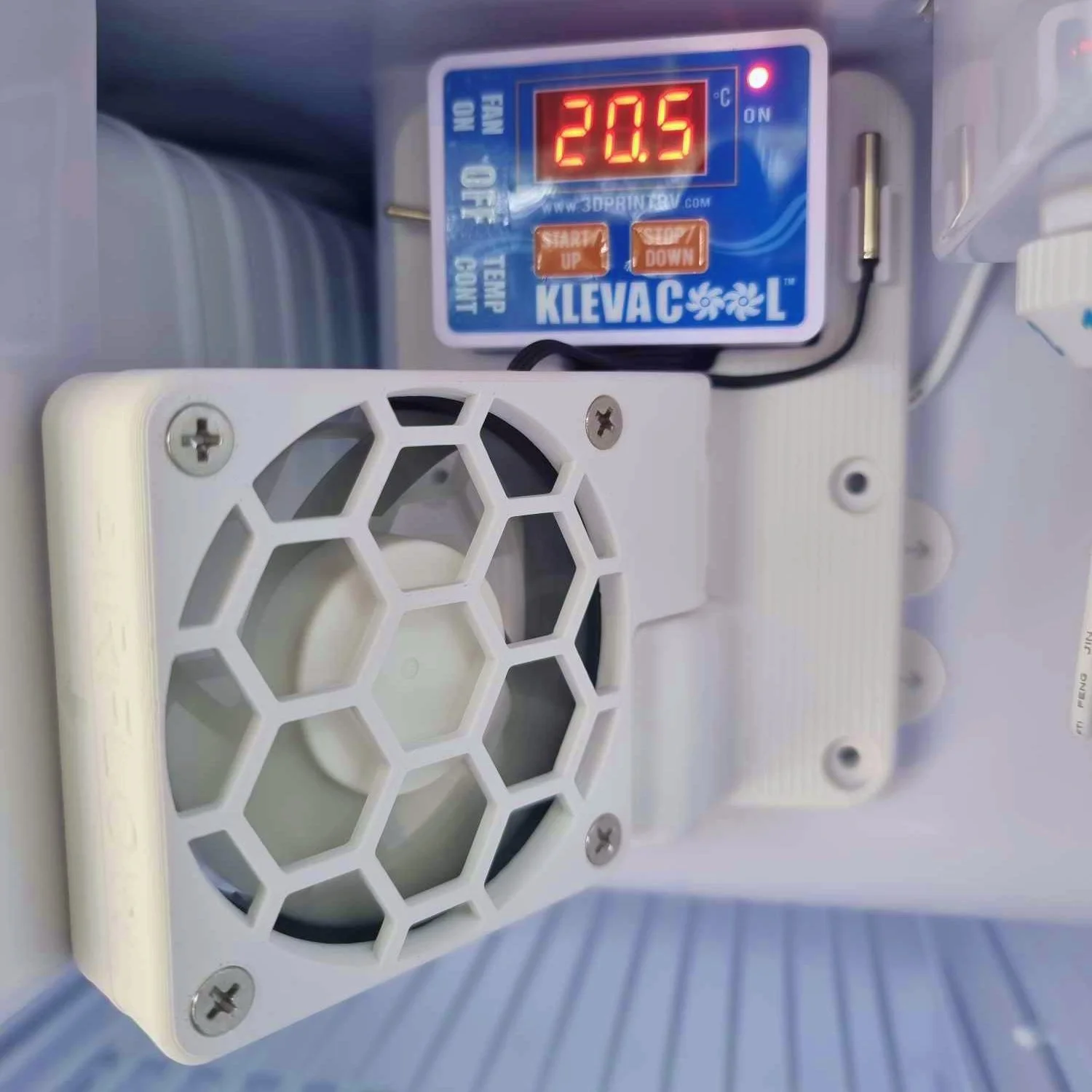

Mount the fan unit to the side of your fridge using the included self adhesive strips.
Connect the fans to 12v from your van battery management system or fridge electrical system.
Detailed, step by step instructions with photos are provided & include my phone number for support.
Any questions prior to purchase of a kit will be promptly answered using our contact page or the messenger link in the bottom RH corner of this page.
Patent Pending: 2022215165
Design Registration: 202315271
Klevacool fridge fans have always been recognised for their quality.
Our fridge fan kits now come with a 3 year warranty.
Internal fridge fan can be connected by itself, or for the ultimate system, connect to a Klevacool Fridge Vent system for fully automatic operation! (Instructions included)
Important Notes!
Installation of these fans is simple, but a power supply is required for them to operate. Wiring will need to be installed from the van electrical system to the vent. 4 meters of wire is included. Wire is 3mm diameter, so will fit through the smallest of drain holes.
We recommend connecting the fan system to your fridge power supply. The fridge power supply should be connected to your vans battery management system.
If you are unsure how to install this wiring, please consult with your local auto electrician or caravan repair shop.
Detailed installation instructions are included.
SPECIFICATIONS:
Fan size -70mm
Bearing - Hydro Dynamic
Twin fan current draw - 0.24A total (5.8Ah/day maximum)
Single & adjustable fan current draw - 0.14A total (3.4Ah/day maximum)
Single Fan Dimensions:
141mm x 95mm x 42mm (56mm with thermostat mounted vertically)
Twin Fan Dimensions:
216mm x 95mm x 42mm (56mm with thermostat mounted vertically)

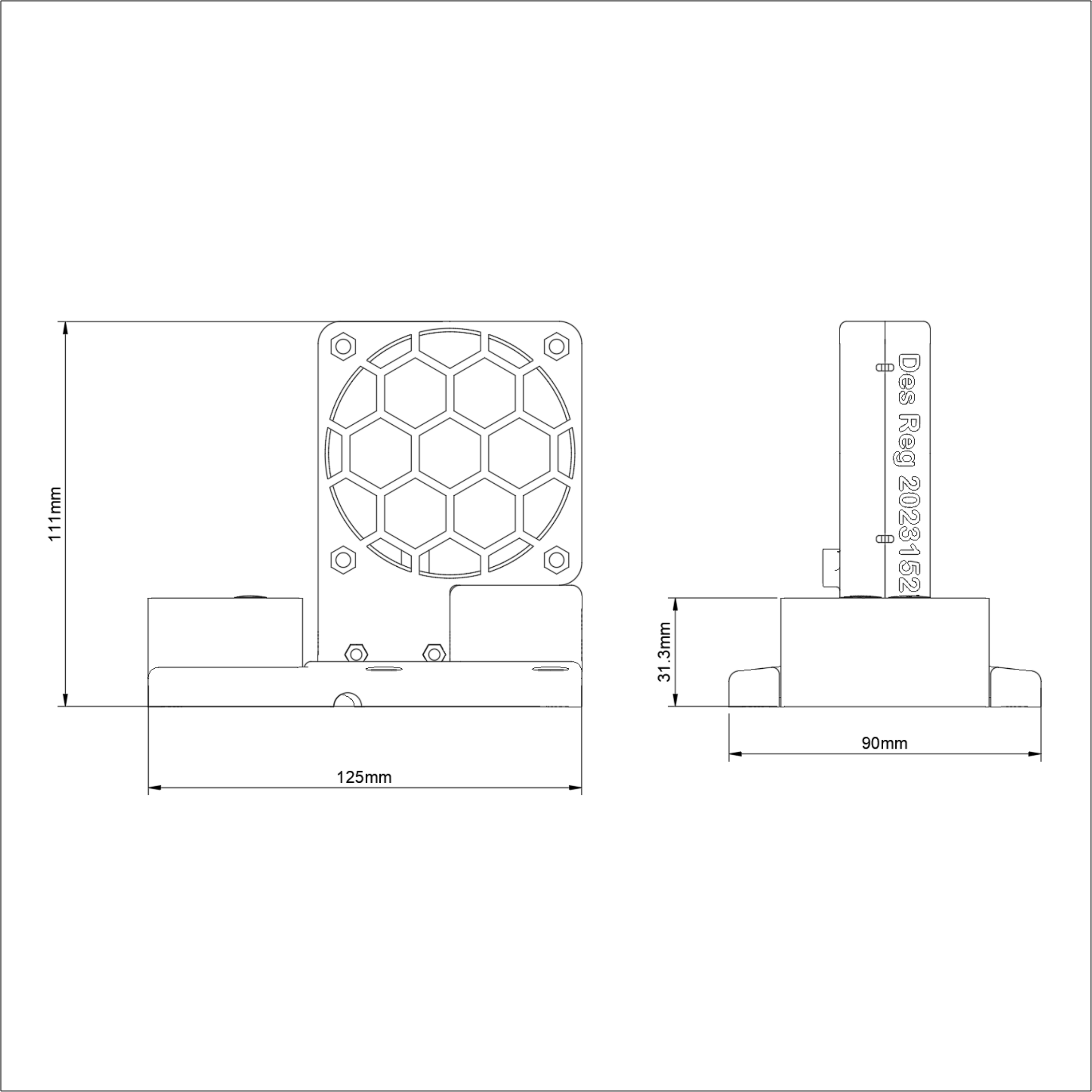

Adjustable Fan Dimensions:
Base: 125mm high x 90mm wide
Fan cage: 110mm from base, with fan in vertical position.
INCLUDED IN KIT
1 x Klevacool single, twin or adjustable fan system, fully assembled & tested with 4 meters of cable
1 x fuse holder
2 x 3A fuses
Terminals to facilitate power connection.
Double sided self adhesive strips (2)
alchohol wipes for cleaning surface before mounting
Small zip ties to keep cables neat
Detailed installation instructions
This product carries a 36 month warranty.
Common fridges & compatable Klevacool Internal fans (more to come):
Green Tick - Fits well
Orange tick - Fits, but not as well
Red cross - Doesn’t fit.
